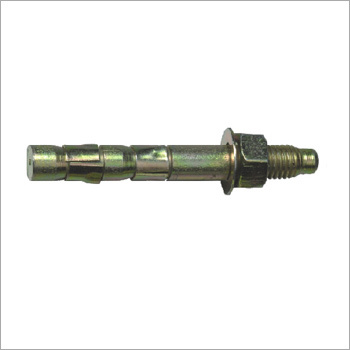

Double Ring

Double Ring
Double Ring
Send Inquiry
Product Code : 02
Brand Name : KARAN INTERNATIONAL
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price
  • Price Range
  • 1.00 - 5000.00 INR
Product Specifications
  • Surface Treatment
  • Galvanized
Product Description

Before producing Double Ring, our procurers make sure of its unblemished manufacturing. This is basically made for push-through and pre-positioned installation. The double clip design of our produced ring lends double gripping in holding of object. With premium finish, corrosion resistance and tough strength helps them to stay in position for unlimited years. Dimensions from the wide range of it can be selected to get the choicest product as per applications needs. Our preduced Double Ring is delivered to clients in perfect packaging material.

 Features:

  • Double ring is used for push through and pre-positioned installation.
  • When hexagon nut is tightened, the tapered bolt is easily pulled into the expansion clip and expand against the hole wall.
  • Place the fasteners and then hammer it
  • Tighten the nut which easily projects and the clip inside expands the firm grip on the concrete.
  • Its double clips provides double gripping.
  • Just drill to the length of fasteners minus the thickness of nuts, minus the thickness of the fixture.



Non-cracked concrete

8mm Dia

10mm Dia

12mm Dia

16mm Dia

20mm Dia

4.2

5.8

10.2

17.9

24.0

5.2

7.6

10.6

25.0

39.1



Anchor Size

8mm Dia

10mm Dia

12mm Dia

16mm Dia

20mm Dia

Tensile

4.2

5.8

10.2

17.9

24.0

Shear

5.2

7.6

10.6

25.0

39.1

 Applications

  • Cable trays Window elements
  • Railings Facades
  • Consoles Staircases
  • Steel construction Gates
  • Ladders Machines
  • Rail Tracks Wood constructions
  • sizes

  • DR 6 x 75 DR 12 x 75 DR 16 x 300
  • DR 8 x 75 DR 12 x 100 DR 20 x 100
  • DR 8 x 100 DR 12 x 125 DR 20 x 125
  • DR 8 x 125 DR 12 x 150 DR 20 x 150
  • DR 8 x 150 DR 12 x 200 DR 20 x 200
  • DR 10 x 75 DR 16 x 100 DR 20 x 250
  • DR 10 x 100 DR 16 x 125 DR 20 x 300
  • DR 10 x 125 DR 16 x 150 DR 24 x 150
  • DR 10 x 150 DR 16 x 200 DR 24 x 200
  • DR 10 x 200 DR 16 x 250 DR 24 x 250
  • DR 24 x 300

Also available in stainless steel & high carbon materials with hot dip
galvanised finish on request.
